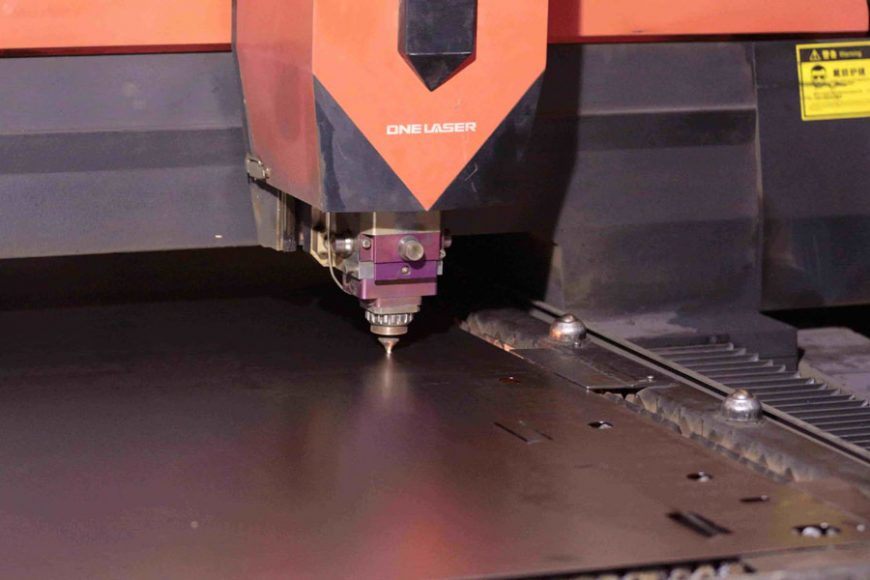

The advent of additive manufacturing (AM), commonly referred to as 3D printing, has revolutionized the manufacturing landscape by enabling the production of complex geometries with unprecedented design freedom. When combined with traditional manufacturing techniques, such as sheet metal forming, this technology gives rise to hybrid manufacturing—a synergistic approach that leverages the strengths of both additive and subtractive or formative processes. Hybrid manufacturing of sheet metal parts, in particular, has garnered significant attention in industries such as aerospace, automotive, and medical, where precision, customization, and efficiency are paramount. This article provides a comprehensive exploration of the research, technologies, applications, and challenges associated with 3D printing and hybrid manufacturing of sheet metal parts, delving into the scientific principles, process integrations, material considerations, and future prospects of this transformative field.
The integration of 3D printing with sheet metal forming addresses several limitations of standalone processes. Additive manufacturing excels in producing intricate, lightweight structures but often struggles with surface finish, dimensional accuracy, and production speed for large-scale components. Conversely, sheet metal forming is highly efficient for producing robust, large-scale parts but is constrained by tooling costs and geometric complexity. Hybrid manufacturing bridges these gaps, enabling the production of sheet metal parts with enhanced functionality, reduced lead times, and optimized material usage. Recent studies, as highlighted in various scholarly sources, underscore the potential of hybrid approaches to redefine manufacturing paradigms, particularly for low-volume, high-value applications.
This article is structured to provide a systematic examination of the field, beginning with the fundamentals of 3D printing and sheet metal forming, followed by an in-depth analysis of hybrid manufacturing processes, material considerations, applications, and emerging research trends. Detailed tables are included to facilitate comparisons of technologies, materials, and performance metrics, ensuring a rigorous and data-driven presentation. The tone adheres to a formal, objective style, consistent with academic and scientific discourse, while striving to be accessible to a broad readership.
Fundamentals of 3D Printing for Metal Parts
Overview of Additive Manufacturing
Additive manufacturing encompasses a range of technologies that build three-dimensional objects by depositing material layer by layer, guided by digital models typically created using computer-aided design (CAD) software. Unlike subtractive manufacturing, which removes material from a solid block, or formative manufacturing, which shapes material through deformation, AM offers unparalleled flexibility in producing complex geometries without the need for specialized tooling. Metal 3D printing, a subset of AM, has gained prominence due to its ability to fabricate high-strength components for demanding applications.
The primary metal AM processes relevant to sheet metal part production include powder bed fusion (PBF), directed energy deposition (DED), and binder jetting. Each process operates on distinct principles, with implications for part quality, production speed, and material compatibility.
- Powder Bed Fusion (PBF): PBF, encompassing selective laser melting (SLM) and direct metal laser sintering (DMLS), uses a laser or electron beam to selectively fuse metal powder particles in a thin layer spread across a build platform. The process repeats layer by layer until the part is complete. SLM fully melts the powder, producing dense parts, while DMLS fuses particles at a molecular level, often using alloys with variable melting points. PBF is widely used for producing intricate, high-precision components but is limited by build volume and surface roughness.
- Directed Energy Deposition (DED): DED involves the simultaneous delivery of metal powder or wire and an energy source (laser, electron beam, or plasma arc) to melt and deposit material. This process is suitable for repairing or adding features to existing parts, making it a candidate for hybrid manufacturing with sheet metal. DED offers higher deposition rates than PBF but typically results in lower resolution and requires post-processing.
- Binder Jetting: In binder jetting, a liquid binding agent is selectively deposited onto a metal powder bed to form a “green” part, which is later sintered in a furnace to achieve full density. Binder jetting is cost-effective for small-to-medium production runs and allows for larger build volumes than PBF but introduces challenges related to shrinkage and porosity.
Key Characteristics of Metal 3D Printing
Metal 3D printing offers several advantages over traditional manufacturing, particularly for sheet metal applications:
- Design Freedom: AM enables the creation of complex geometries, such as lattice structures, internal channels, and topology-optimized designs, which are infeasible with conventional sheet metal forming.
- Material Efficiency: By adding material only where needed, AM minimizes waste compared to subtractive processes like CNC machining or laser cutting.
- Customization: The tool-less nature of AM facilitates rapid prototyping and low-volume production, ideal for bespoke sheet metal components.
- Lightweighting: AM can produce parts with reduced weight through optimized structures, a critical factor in aerospace and automotive applications.
However, metal 3D printing also faces challenges:
- Surface Roughness: As-printed parts often exhibit rough surfaces, necessitating post-processing such as machining or polishing.
- Dimensional Accuracy: Tolerances in AM (±0.1 mm for PBF) are generally less precise than those achievable with CNC machining (±0.005 mm).
- Production Speed: AM processes are slower than sheet metal forming for high-volume production, making them better suited for low-to-medium volumes.
- Material Limitations: While a range of metals (e.g., stainless steel, titanium, aluminum) are compatible with AM, the availability of specialized alloys is limited compared to traditional manufacturing.
Comparison of Metal 3D Printing Technologies
The following table summarizes the key characteristics of metal 3D printing technologies relevant to sheet metal part production:
Technology | Process | Materials | Build Volume (mm) | Layer Thickness (µm) | Accuracy (mm) | Advantages | Limitations |
---|---|---|---|---|---|---|---|
Selective Laser Melting (SLM) | Laser fuses metal powder | Stainless steel, titanium, aluminum | 250 x 150 x 150 | 20–50 | ±0.1 | High density, complex geometries | High cost, limited build volume |
Direct Metal Laser Sintering (DMLS) | Laser fuses alloy powder | Nickel alloys, cobalt-chrome | 250 x 150 x 150 | 20–50 | ±0.1 | Alloy compatibility, high strength | Rough surface, post-processing required |
Directed Energy Deposition (DED) | Laser/arc melts powder/wire | Steel, titanium, Inconel | Up to 2000 x 1500 x 1000 | 100–1000 | ±0.5 | Large parts, repair capabilities | Lower resolution, post-processing needed |
Binder Jetting | Binder bonds powder, sintered later | Stainless steel, copper | 400 x 250 x 250 | 50–100 | ±0.2 | Cost-effective, larger volumes | Porosity, shrinkage during sintering |
This table highlights the trade-offs between precision, build size, and cost, which are critical considerations in hybrid manufacturing applications.
Fundamentals of Sheet Metal Forming
Overview of Sheet Metal Forming
Sheet metal forming is a manufacturing process that transforms flat metal sheets into three-dimensional components through deformation, typically without removing material. Common forming techniques include bending, stretching, drawing, and stamping, each suited to specific part geometries and production volumes. Sheet metal forming is widely used in industries such as automotive (e.g., car body panels), aerospace (e.g., aircraft skins), and consumer electronics (e.g., enclosures), due to its ability to produce durable, lightweight parts at scale.
The process relies on specialized tooling, such as dies and punches, to shape the metal sheet. The choice of forming technique depends on factors such as material properties, part complexity, and production volume:
- Bending: Involves deforming the sheet along a straight axis to create angles or curves, commonly using press brakes.
- Stretching: Extends the sheet over a die to form shallow, curved surfaces, often used for large panels.
- Drawing: Pulls the sheet into a die cavity to create deep, hollow shapes, such as cups or enclosures.
- Stamping: Uses a press to cut or form the sheet, combining operations like punching, blanking, and embossing.
Key Characteristics of Sheet Metal Forming
Sheet metal forming offers several advantages for part production:
- High Efficiency: Automated forming processes enable rapid production of large quantities, making it cost-effective for mass production.
- Material Versatility: A wide range of metals, including steel, aluminum, and copper, can be formed, with thicknesses typically ranging from 0.5 to 6 mm.
- Structural Integrity: Formed parts retain the inherent strength of the metal sheet, suitable for load-bearing applications.
- Cost-Effectiveness: For high-volume production, the amortized cost of tooling is low, offsetting initial setup expenses.
However, sheet metal forming also has limitations:
- Tooling Costs: The design and fabrication of dies and punches are expensive and time-consuming, particularly for low-volume production.
- Geometric Constraints: Complex geometries with undercuts or intricate features are challenging to achieve without multiple forming steps or secondary processes.
- Material Waste: Cutting operations, such as blanking or trimming, generate scrap, increasing material costs.
- Lead Times: Tooling development can take weeks or months, delaying prototyping and production.
Comparison of Sheet Metal Forming Techniques
The following table compares common sheet metal forming techniques, highlighting their applications and limitations:
Technique | Process Description | Typical Materials | Thickness (mm) | Applications | Advantages | Limitations |
---|---|---|---|---|---|---|
Bending | Deforms sheet along a straight axis | Steel, aluminum | 0.5–6 | Brackets, enclosures | Simple, cost-effective | Limited to linear bends |
Stretching | Extends sheet over a die | Aluminum, stainless steel | 0.5–3 | Aircraft panels, automotive hoods | Large, smooth surfaces | Risk of tearing, limited depth |
Drawing | Pulls sheet into a die cavity | Steel, copper | 0.5–4 | Cups, cans, automotive parts | Deep shapes, high strength | Requires multiple stages for complexity |
Stamping | Cuts or forms sheet with a press | All sheet metals | 0.5–6 | Chassis, panels, electronic housings | High precision, automation-friendly | High tooling costs, scrap generation |
This table underscores the suitability of sheet metal forming for high-volume production while highlighting the challenges of tooling and complexity, which hybrid manufacturing seeks to address.
Hybrid Manufacturing: Concepts and Principles
Definition and Rationale
Hybrid manufacturing combines additive and subtractive or formative processes within a single workflow to leverage the strengths of each while mitigating their weaknesses. In the context of sheet metal parts, hybrid manufacturing typically integrates 3D printing with forming techniques to produce components with enhanced geometric complexity, improved surface quality, and reduced production costs. The rationale for hybrid manufacturing lies in its ability to address the limitations of standalone AM and forming processes:
- Overcoming AM Limitations: 3D printing struggles with surface roughness, dimensional accuracy, and slow build rates. Forming processes can refine AM parts through deformation, improving surface finish and precision.
- Enhancing Forming Capabilities: Sheet metal forming is constrained by tooling and geometric limitations. AM can produce custom tooling, fixtures, or complex preforms that enable novel forming applications.
- Cost and Time Savings: By reducing reliance on traditional tooling and enabling rapid prototyping, hybrid manufacturing lowers costs and lead times, particularly for low-volume production.
Hybrid manufacturing can be categorized into two approaches: sequential hybrid processes, where AM and forming are performed in distinct steps, and integrated hybrid processes, where both occur within a single machine or setup. Recent research emphasizes the potential of hybrid approaches to revolutionize sheet metal part production, particularly in industries requiring high customization and rapid iteration.
Sequential Hybrid Processes
In sequential hybrid manufacturing, 3D printing and sheet metal forming are performed as separate steps, often requiring part transfer between machines. Common workflows include:
- AM Preforms with Forming: A 3D-printed metal preform is created with near-net-shape geometry, which is then formed (e.g., bent or stretched) to achieve final dimensions and surface quality. This approach is used to produce complex sheet metal parts with features like ribs or lattice structures that are infeasible with traditional forming.
- AM Tooling for Forming: 3D printing is used to fabricate custom dies, punches, or fixtures, which are then used in conventional forming processes. Polymer or metal AM tooling reduces lead times and costs compared to CNC-machined tooling, particularly for prototyping or small batches.
- Post-Processing of AM Parts: 3D-printed parts are subjected to forming operations, such as stamping or rolling, to improve surface finish, dimensional accuracy, or mechanical properties. This is particularly relevant for PBF parts with rough surfaces.
A notable example is the production of car seat components, where a Chinese manufacturer used 3D printing to create stainless steel sheet metal parts with complex ribs and bumps, which were then polished and formed to meet design specifications. This process reduced production time from weeks to days, demonstrating the efficacy of sequential hybrid manufacturing.
Integrated Hybrid Processes
Integrated hybrid manufacturing combines AM and forming within a single machine or closely coupled system, minimizing part handling and improving process efficiency. Examples include:
- Hybrid AM-Forming Machines: Machines equipped with both AM capabilities (e.g., laser powder bed fusion) and forming tools (e.g., press brakes or rollers) enable in-situ fabrication and deformation. These systems are under development but show promise for producing seamless sheet metal parts.
- Multi-Material Deposition: Advanced AM systems deposit multiple materials (e.g., metal and polymer) to create hybrid structures, which are then formed to achieve desired shapes. This is particularly relevant for metal-polymer hybrid joints, where AM pins enhance joint strength.
- In-Situ Forming: Some DED systems incorporate forming tools to shape deposited material during the build process, reducing the need for post-processing. This approach is suited for large-scale sheet metal components.
Integrated processes are less mature than sequential approaches, with a manufacturing readiness level (MRL) of 4–5, indicating laboratory-scale feasibility. However, ongoing research aims to industrialize these systems for broader applications.
Benefits of Hybrid Manufacturing
Hybrid manufacturing offers several advantages for sheet metal part production:
- Enhanced Design Flexibility: Combining AM’s geometric freedom with forming’s precision enables the creation of parts with intricate features and optimized performance.
- Reduced Tooling Costs: AM tooling or preforms eliminate the need for expensive dies, making low-volume production economically viable.
- Improved Part Quality: Forming refines the surface finish and dimensional accuracy of AM parts, while AM enhances the complexity of formed parts.
- Sustainability: Hybrid processes reduce material waste and energy consumption by optimizing material usage and minimizing scrap.
- Rapid Prototyping: The tool-less nature of AM, combined with forming’s speed, accelerates design iteration and product development.
Challenges in Hybrid Manufacturing
Despite its potential, hybrid manufacturing faces several challenges:
- Process Integration: Coordinating AM and forming processes requires precise control of parameters, such as temperature, deformation forces, and material properties, to avoid defects.
- Material Compatibility: Differences in material behavior between AM and forming (e.g., anisotropy in AM parts) can lead to cracking or uneven deformation.
- Equipment Costs: Hybrid machines are expensive and complex, limiting their adoption in small-scale operations.
- Standardization: The lack of standardized workflows and data formats for hybrid manufacturing hinders scalability and interoperability.
- Post-Processing: While forming reduces the need for machining, some hybrid parts still require finishing to meet tolerances or aesthetic requirements.
Materials in Hybrid Manufacturing of Sheet Metal Parts
Metal Materials for 3D Printing and Forming
The choice of materials in hybrid manufacturing is critical, as it influences process compatibility, part performance, and cost. Common metals used in both AM and sheet metal forming include:
- Stainless Steel: Widely used due to its corrosion resistance, strength, and formability. Grades like 316L and 17-4 PH are compatible with SLM, DMLS, and binder jetting, and are easily formed through bending or stamping.
- Aluminum: Lightweight and ductile, aluminum alloys (e.g., AlSi10Mg) are suitable for aerospace and automotive applications. AM aluminum parts can be formed to improve surface quality, but care must be taken to avoid cracking.
- Titanium: Titanium alloys (e.g., Ti-6Al-4V) offer high strength-to-weight ratios and biocompatibility, making them ideal for medical and aerospace parts. Their high cost and AM-specific microstructure require specialized forming techniques.
- Copper: Valued for its thermal and electrical conductivity, copper is used in binder jetting and DED for applications like heat exchangers. Its ductility supports forming but requires precise control to prevent work hardening.
- Nickel Alloys: Alloys like Inconel 718 are used in high-temperature applications (e.g., aerospace turbines). Their AM compatibility and formability make them suitable for hybrid processes, though post-processing is often needed.
Material Properties and Challenges
The properties of AM metals differ from those of conventionally processed sheets due to microstructural variations:
- Anisotropy: AM parts often exhibit anisotropic mechanical properties due to layer-by-layer construction, affecting formability. For example, the Z-direction strength of AM parts is typically lower than in-plane strength.
- Porosity: Binder jetting and some PBF processes introduce internal porosity (0.2–2%), which can reduce fatigue strength and complicate forming.
- Surface Roughness: AM parts have rough surfaces (Ra 5–20 µm), which can lead to stress concentrations during forming. Post-forming polishing or machining is often required.
- Residual Stresses: AM processes induce residual stresses due to rapid heating and cooling, which can cause warping or cracking during forming. Heat treatments are used to mitigate these stresses.
Forming processes must account for these properties to ensure part integrity. For instance, smaller AM pins used in hybrid metal-composite joints reduce composite damage during forming, improving joint strength.
Comparison of Material Properties
The following table compares the properties of common metals used in hybrid manufacturing, focusing on AM and forming compatibility:
Material | AM Process | Formability | Tensile Strength (MPa) | Elongation (%) | Applications | Challenges |
---|---|---|---|---|---|---|
Stainless Steel (316L) | SLM, Binder Jetting | High | 500–700 | 40–60 | Automotive, medical | Surface roughness, cost |
Aluminum (AlSi10Mg) | SLM, DMLS | Moderate | 300–450 | 5–10 | Aerospace, automotive | Cracking, low ductility |
Titanium (Ti-6Al-4V) | SLM, DED | Low | 900–1100 | 8–15 | Medical, aerospace | High cost, anisotropic properties |
Copper | Binder Jetting, DED | High | 200–300 | 30–50 | Heat exchangers, electronics | Work hardening, porosity |
Inconel 718 | DMLS, DED | Moderate | 1000–1400 | 15–25 | Aerospace turbines, high-temp parts | Post-processing, residual stresses |
This table illustrates the trade-offs between strength, formability, and process compatibility, guiding material selection in hybrid manufacturing.
Applications of Hybrid Manufacturing in Sheet Metal Parts
Aerospace Industry
The aerospace industry is a primary adopter of hybrid manufacturing due to its demand for lightweight, high-strength components with complex geometries. Hybrid processes are used to produce:
- Structural Components: AM preforms with lattice structures are formed into aircraft skins or brackets, reducing weight while maintaining strength. For example, a topology-optimized titanium bracket produced via DMLS and formed to final shape halved the weight of a steel equivalent.
- Tooling and Fixtures: 3D-printed polymer or metal dies enable rapid prototyping of sheet metal parts like wing panels, reducing lead times from months to days.
- Repair and Maintenance: DED is used to deposit material onto worn sheet metal components (e.g., turbine blades), followed by forming to restore original geometry, extending part lifespan.
Automotive Industry
In the automotive sector, hybrid manufacturing supports the production of lightweight, customized parts for both conventional and electric vehicles:
- Body Panels: AM preforms with internal stiffeners are formed into complex panels, enhancing crash resistance while reducing weight.
- Prototyping: 3D-printed tooling accelerates the development of sheet metal prototypes, enabling rapid iteration of designs like car seat frames.
- Custom Components: Hybrid processes produce bespoke parts, such as exhaust manifolds with conformal cooling channels, improving performance and fuel efficiency.
Medical Industry
The medical sector leverages hybrid manufacturing for biocompatible, patient-specific components:
- Implants and Prosthetics: Titanium AM parts are formed to match patient anatomy, improving fit and functionality. For example, 3D-printed titanium implants are stamped to achieve smooth surfaces for osseointegration.
- Surgical Tools: Hybrid manufacturing produces lightweight, ergonomic tools with complex geometries, reducing fatigue during procedures.
- Medical Equipment: Sheet metal enclosures for devices like MRI machines are produced using AM tooling, enabling rapid customization.
Other Industries
- Consumer Electronics: Hybrid manufacturing creates thin, intricate enclosures with integrated features like heat sinks, combining AM’s complexity with forming’s precision.
- Construction: Large-format AM combined with forming produces sheet metal components with non-prismatic sections, enhancing structural efficiency in buildings.
- Energy: Hybrid processes fabricate heat exchangers and turbine components with optimized geometries, improving thermal performance.
Recent Research Trends
Advancements in Process Integration
Recent studies focus on developing integrated hybrid machines that combine AM and forming in a single setup. For instance, the HyFAM process combines PBF with in-situ forming to produce sheet metal parts with high precision and minimal post-processing. Research indicates that such systems can reduce production time by up to 30% compared to sequential processes.
Multi-Material Manufacturing
Multi-material AM, where dissimilar metals or metal-polymer combinations are deposited, is a growing area of research. Studies on steel-copper and metal-polymer joints demonstrate improved mechanical properties when AM pins or rough surfaces enhance interlocking during forming. These advancements are particularly relevant for lightweight, multifunctional components.
Biomimetic Structures
Inspired by natural structures like honeycombs or nacre, researchers are using AM to create bioinspired sheet metal parts with enhanced mechanical properties. These parts are formed to optimize compressive or impact resistance, with applications in armor and aerospace.
Simulation and Optimization
Advances in 3D printing simulations enable predictive modeling of hybrid processes, optimizing parameters like laser power, forming forces, and material flow. These simulations reduce trial-and-error, improving part quality and process efficiency.
Sustainability and Recycling
Research on powder reuse in PBF processes shows that recycling metal powder does not significantly degrade part properties, enhancing the sustainability of hybrid manufacturing. Studies also explore closed-loop systems for scrap recovery during forming.
Challenges and Future Directions
Technical Challenges
- Process Control: Achieving consistent quality in hybrid processes requires advanced sensors and real-time monitoring to adjust parameters dynamically.
- Material Development: New alloys tailored for both AM and forming are needed to improve compatibility and performance.
- Scalability: Scaling hybrid manufacturing for high-volume production requires cost-effective machines and standardized workflows.
Economic and Regulatory Challenges
- Cost Barriers: High initial investments in hybrid machines limit adoption, particularly for small businesses. Research into affordable systems, like metal extrusion, aims to address this.
- Regulatory Compliance: Industries like aerospace and medical require rigorous certification of hybrid parts, necessitating standardized testing protocols.
Future Prospects
- Industry 4.0 Integration: The incorporation of AI, IoT, and digital twins will enhance process automation and optimization in hybrid manufacturing.
- Large-Format Printing: Advances in large-format AM will enable the production of oversized sheet metal components, expanding applications in construction and energy.
- Circular Economy: Research into recyclable materials and zero-waste processes will align hybrid manufacturing with sustainability goals.
- Education and Workforce Development: Training programs for engineers and technicians will accelerate the adoption of hybrid technologies, fostering innovation.
Conclusion
The convergence of 3D printing and sheet metal forming in hybrid manufacturing represents a paradigm shift in the production of sheet metal parts. By combining the geometric freedom of AM with the precision and efficiency of forming, hybrid processes enable the creation of complex, high-performance components for industries ranging from aerospace to medical. Recent research highlights the potential of integrated systems, multi-material approaches, and biomimetic designs to further enhance part quality and functionality. However, challenges related to process integration, material compatibility, and scalability must be addressed to realize the full potential of hybrid manufacturing.
The detailed tables provided in this article offer a comparative framework for understanding the technologies, materials, and applications involved, serving as a valuable resource for researchers, engineers, and industry professionals. As advancements in process control, simulation, and sustainability continue, hybrid manufacturing is poised to redefine the manufacturing landscape, delivering innovative solutions for the challenges of the 21st century.
